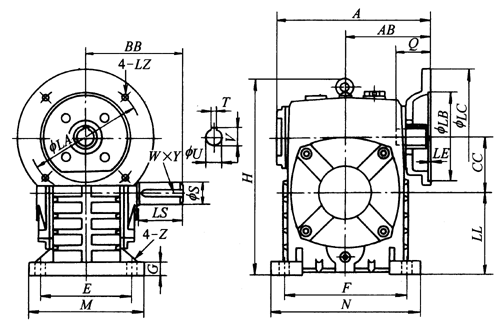

WPDS50、WPDS60、WPDS70、WPDS80、WPDS100、WPDS120、WPDS135、WPDS155、WPDS175、WPDS200、WPDS250、型蜗轮蜗杆减速器主要尺寸
规格 | 输入功率/kW | 减速比 | A | AB | BB | CC | H | HL | LL | M | N | E | F | G | Z |
50 | 0.18 | 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60 | 151 | 83 | 97 | 50 | 176 | 50 | 80 | 120 | 140 | 95 | 110 | 15 | 12 |
60 | 0.37 | 167 | 91 | 112 | 60 | 204 | 60 | 90 | 130 | 150 | 105 | 120 | 20 | 12 | |
70 | 0.37 | 200 | 109 | 131 | 70 | 236 | 70 | 105 | 150 | 190 | 115 | 150 | 20 | 15 | |
0.75 | 202 | 111 | |||||||||||||
80 | 0.75 | 225 | 125 | 142 | 80 | 268 | 80 | 120 | 170 | 220 | 135 | 180 | 20 | 15 | |
1.5 | |||||||||||||||
100 | 1.5 | 280 | 148 | 169 | 100 | 336 | 100 | 150 | 190 | 270 | 155 | 220 | 25 | 15 | |
120 | 2.2 | 333 | 181 | 190 | 120 | 430 | 120 | 180 | 230 | 320 | 180 | 260 | 30 | 18 | |
3.0 | |||||||||||||||
135 | 3.0 | 375 | 202 | 210 | 135 | 480 | 135 | 215 | 250 | 350 | 200 | 290 | 30 | 18 | |
4.0 | |||||||||||||||
155 | 5.5 | 448 | 247 | 252 | 155 | 531 | 135 | 235 | 275 | 390 | 220 | 320 | 35 | 21 | |
175 | 5.5 | 481 | 262 | 262 | 175 | 600 | 160 | 260 | 310 | 430 | 250 | 350 | 40 | 21 | |
7.5 | |||||||||||||||
200 | 11.0 | 543 | 285 | 305 | 200 | 666 | 175 | 290 | 360 | 480 | 290 | 390 | 40 | 24 | |
250 | 11.0 | 615 | 330 | 360 | 250 | 800 | 200 | 350 | 460 | 560 | 380 | 480 | 45 | 28 | |
15.0 |
